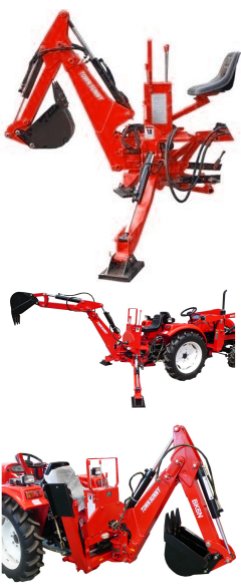

Pelles Rétro DongFeng sur attelage 3-points.
|
Nos Pelles - Rétro sont construites
par DongFeng pour leurs tracteurs.
Cépendant, sans adaptation, elles iront sur les tracteurs equipés de branchements hydrauliques
et d'un levage 3-points de catégorie 1.
|
|
Grace aux stabilisateurs, la masse et la force du tracteur,
les pelles DongFeng ont une force de travail impressionnante comparé à une minipelle
du même prix. Aussi, une mini-pelle ne se déplace pas à 27 km/h (25 et 30 cv),
voir à 35 km/h (40hp). Et un tracteur à 4 roues motrices accède partout!
|
|
Puissance tracteur
Pelle type
Masse
Angle de travail
Hauteur transport
Profondeur travail
Hauteur de
dechargement
Portée de travail
Prix euro HT
|
30 cv
BK6-N
396kg
180°
1830mm
1868mm
1676mm
2492mm
3.257 HT
|
|
40 cv
BK-7.5N
425kg
180°
2030mm
2300mm
1930mm
2959mm
3.440 HT
|
|
|
|
|
|
Images plus grandes
|
|
|
|
Pelle-rétro VIDEO
|
| |
| |
|
DongFeng Backhoes for Cat.1 3-points hitch.
|
Maison du Tracteur Backhoes are
build by DongFeng for DongFeng tractors.
However, they will probably fit all tractors equipped with Hydraulic Outlets
and Cat.1 3-point suspension.
|
|
Thanks to the stabilizers, the weight and the tractor's force,
Dong Feng Backhoes have incredible digging force.
Compared to a mini-digger, the tractor can travel itself at 27 km/h (25 and 30 hp),
or even at 35 km/h (40hp).
And a 4-wheel driven tractor gets anywhere!
|
|
Tractor hp
Backhoe type
Weight
Swing angle
Transport height
Digging depth
Unloading height
Working reach
Price without VAT
|
30 hp
BK6-N
396kg
180°
1830mm
1868mm
1676mm
2492mm
3.257 E
|
|
40 hp
BK-7.5N
425kg
180°
2030mm
2300mm
1930mm
2959mm
3.440 E
|
|
|
|
|
|
Bigger Images
|
|
|
|
Backhoe VIDEO
|
| |
|
